Standing Seam Metal Roofing: Profiles, Types, Comparison

Standing seam metal roof (SSMR) is designed with hidden fasteners and high seams, making it different from other roofing systems. It’s popular for its weather resistance and architectural adaptability, making it a good fit for contemporary houses and businesses. Although originally developed as a utility roofing system for factories, it quickly became the favorite in homes because of its beauty.

Key Benefits:

It is maintenance free and lasts 50 years or more.
Energy-efficient, reducing cooling costs
Fresh, minimalistic design for various architectures.

The durability of standing seam metal roof is another key feature. When properly maintained, metal roofs will last 50 years or longer than older options such as asphalt shingles. Their hard surface can withstand rot, mold and pests, making them a low-maintenance option for homeowners. This durability, too, means savings over the long run, despite the initial higher cost.

Today, standing seam roofs are widely praised for their energy-efficiency. Reflective material, in turn, prevents heat from being absorbed, thus reducing cooling expenses, especially in hot weather. This energy efficiency makes standing seam metal roof a sustainable option, one that will not only benefit the environment, but also the homeowner’s wallet.

Standing Seam Metal Roof: Profiles & Types

These standing seam panels can be obtained in several forms such as snap-lock, mechanical lock, batten panel, and nail flange. Each profile has distinct features and fits certain slopes and needs.

Selecting the right panel type is dependent on factors such as the roof slope, aesthetic taste, and climate. All types have benefits and disadvantages, and knowing which one is right for you is a way to make the best choice for homeowners. Those living in a snowy area, for example, may opt for a mechanical lock because of its added stability.

Panel Profile Comparisons:

Snap-Lock: Easy to install, best suited to steep slopes
Lock Mech: Durable for high wind conditions
Batten Panel: Provides visual depth, distinctive texture
Nail Flange: Cost-effective, simpler installation

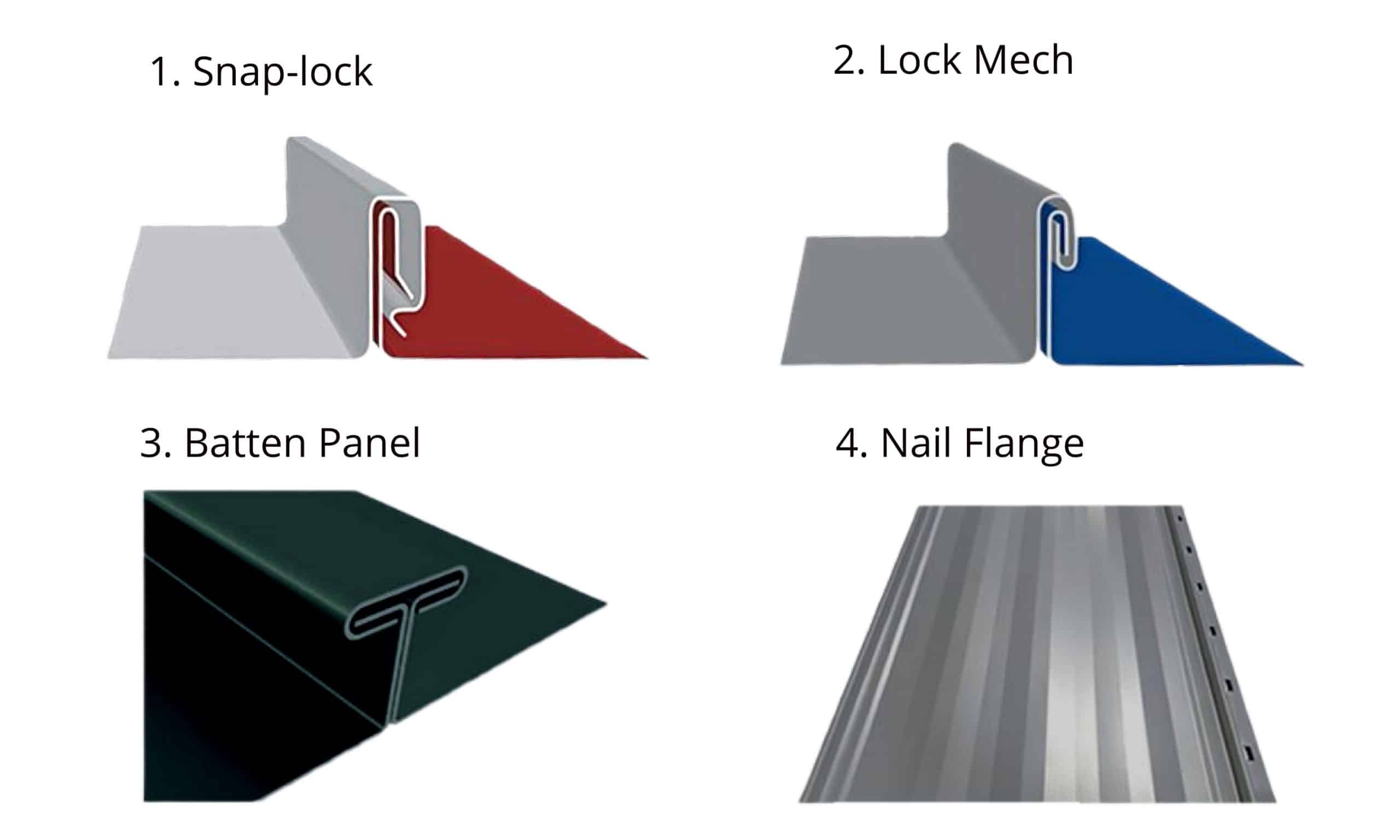

standing seam metal roof types and profiles

Snap-Lock

Snap-lock panels are designed for easy installation with a clip system that snaps together along the seams, eliminating the need for mechanical seaming tools. This system is best suited to steep slopes and low-wind areas, making it ideal for residential projects. Snap-lock panels provide a secure fit, but they rely on proper alignment, so professional standing seam metal roof installation is often recommended for optimal performance.

Ideal for: Residential projects on steep roofs.

Mechanical Lock (Lock Mech)

Mechanical lock panels are highly durable and designed to withstand high wind and extreme weather conditions, making them suitable for commercial applications and coastal areas. They require seaming at the seams during installation, creating a stronger bond than snap-lock systems. Mechanical lock panels can be used on both steep and low slopes, thanks to their secure attachment, which offers additional protection in areas prone to storms.

Ideal for: Commercial and residential projects in high-wind or coastal regions.

Batten Panel

Batten panel systems have a distinctive raised seam that provides extra depth and visual interest, adding to the architectural appeal of the roof. They are typically used for traditional or industrial-style buildings, where the added texture and layered look create a classic aesthetic. This type of panel is more common in areas where the appearance of depth and structural detailing is desired, as it offers a unique, bold look not found in other types.

Ideal for: Buildings needing architectural depth and classic style.

Nail Flange

The nail flange system is a cost-effective option where simplicity and budget are top priorities. This standing seam metal roof uses nails or screws through a flange on the panel’s edge, simplifying installation and reducing costs. While it doesn’t offer the same expansion flexibility as snap-lock or mechanical lock panels, nail flange panels provide adequate weather resistance and are suitable for applications with less demanding climate conditions.

Ideal for: Budget-conscious projects and regions with moderate weather

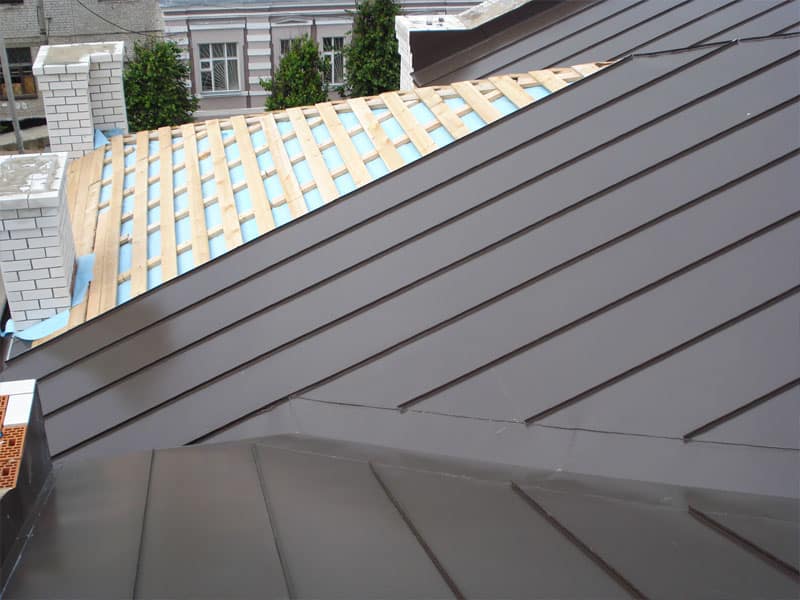

standing seam metal roofing installation

Material Types for Standing Seam Metal Roof

There are several options available for homeowners when it comes to choosing a standing seam roof metal roof material, each with its own advantages and disadvantages. Galvalume is a regular option and combines aluminum with zinc to add extra rust resistance and it works well in any climate.

The price, as well as the durability, have made it quite popular. Aluminum, though less durable than steel, has a greater degree of corrosion resistance, which is great for coastal and wet locations where rust is a concern.

The other option is zinc, which provides a natural aged appearance and offers both strength and a classical appearance. Zinc roofs are environmentally safe and self-cleaning, keeping corrosion away and preserving the roof’s beauty. Copper, which costs a fortune, is a nice addition and is often selected for historical or expensive homes. Copper takes on a distinctive patina that keeps it from rusting and lends character to the building.

Which materials to choose is heavily dependent on climate, design and cost. Copper and zinc are expensive, durable options, but Galvalume and aluminum are cheap and adaptable. Each material has different strengths, and homeowners can pick which one best meets their particular desires.

Material Suitability:

Galvalume: Rust-resistant, versatile
Aluminum: Ideal for coastal areas
Zinc: Natural patina, eco-friendly
Copper: Premium look, long lifespan

Panel Sizes & Structural Options

Stand-up standing seam metal roof panels can be customized to suit the needs of homeowners who want to add utility as well as appearance. Panel thickness can vary between 12 and 18 inches, with narrow panels having a traditional appearance and wider panels adding the sleek minimal touch. It’s also variable in seam height (1 to 3 inches), though taller seams are most often used where the snow is high and will support snow guards.

Tissue or striations, ribbing or flat finishes are other ways to customize the standing seam metal roof.

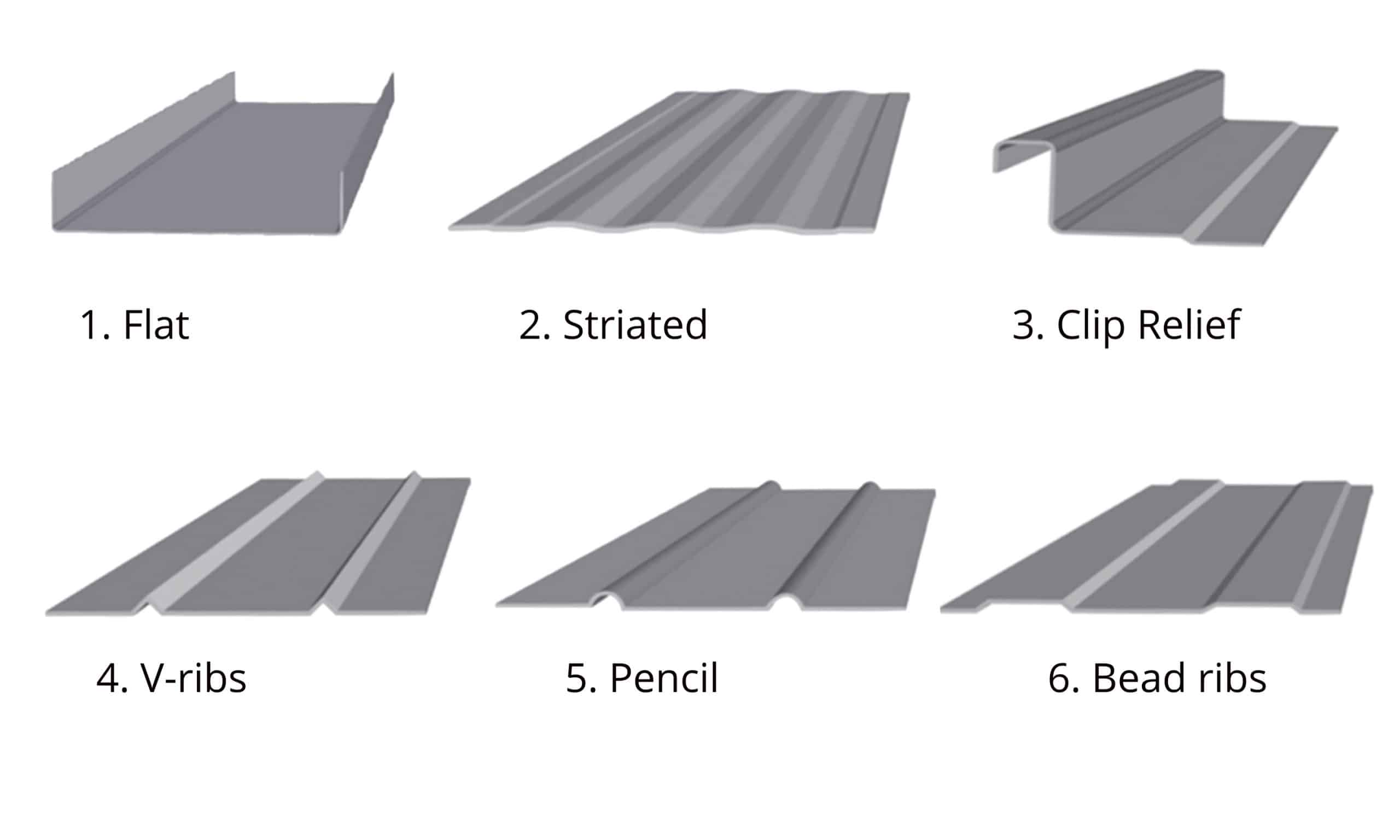

Striations (or stiffening ribs) are ridges that are rolled into the metal roof between the seams. These designs not only simplify the installation and reduce the oil canning look, they are also attractive on the roof. Striations come in many flavors such as:

Flat: No indentations
Striated: Subtle, uniform lines
Clip Relief: An upturned area at the seam that allows clips to be held in place.
Ribbed (V-Ribs: “V” shaped lines, Pencil: Circular indents, Bead: Rectangular grooves)

Standing Seam Panel Sizes and Structural Options

Textures stop oil canning, a raked look in metal that can distract from the roof’s appearance. Furthermore, texturing also offers the chance to incorporate custom design while adding strength to the roof structure. There are both slick and patterned finishes available to homeowners, depending on their aesthetic preferences.

In gauges, the amount of metal also impacts the longevity of the roof. Thicker panels have a better resistance to hail and other debris, which is important in areas that are more likely to experience severe weather. Making these features customized, ensures that the roof looks good and can resist the environmental demands of your area.

Customization Options:

Width: 12-18 inches, influences aesthetic
Seam Height: 1-3″ adds support for a sturdy structure.
Surfaces: Cuts or ribbing for reduced oil canning.

Detailed Advantages

Energy Saver: Diffuses the sunlight and saves on air conditioning costs.

One of the major benefits of standing seam metal roof is their energy efficiency. Metal roofs reflect more sunlight than asphalt shingles, which lowers the interior temperature in hot conditions. This reflectivity lowers the cooling costs and gives homeowners more long-term savings. Many metal roofs are also recyclable, so they are an eco-friendly option.

Durability: Withstands harsh weather conditions

Longevity is another critical benefit. If 20-30 years might pass by if you use the traditional roofing system such as asphalt, 50 years could easily pass by if you’re using a standing seam metal roof. This long life reduces replacement, reducing the cost and waste in the long run. If you live in a harsh climate, raised seam roofs are superior to all other roofing systems, being highly resistant to snow, hail, and wind. Typically, a standing seam metal roof system is rated to withstand winds up to 120 miles per hour. However, in certain conditions, these roofs have been proven to endure wind speeds of 150 miles per hour or higher.

Eco-Friendly: Recyclable materials

Additionally, standing seam roofs can be extremely flexible in aesthetics, seamlessly blending into a range of architectural types. They come in many different colors and finishes that let homeowners match their roof with the design of their home. The contemporary, streamlined style of standing seam panels give a modern and stylish look to your home.

Potential Disadvantages of Standing Seam Metal Roof

standing seam

With all the advantages that standing seam roofs provide, they come with some drawbacks. It requires more money to install compared to other roof types, and that can be a disadvantage for homeowners with a tight budget.

This is because it takes dedicated labour to lay the panels correctly, and the materials used are high quality. Also, it requires more advanced skill to install properly so as not to suffer leaks and misalignments.

At Professional Metal Roofing we offer standing seam metal roof installation from only $9 per sq.ft. Request your free estimate.

Another issue is maintenance and repair complexity. Because of the concealed fasteners, it is harder to reach the roof for repairs or maintenance than standard roofing.

Fixing a standing seam metal roof is more labour-intensive if the damage is located in a difficult-to-reach spot. In addition, sourcing replacement components for custom installations can be expensive and time-consuming.

Even when the roof is robust, it can be dented by hail or other heavy impacts. Metal roofs are weather resistant in most cases, though big hailstones or falling branches leave dents that can ruin the appearance. These dents are not usually harmful to performance, but may need to be repaired for the aesthetic purposes of keeping the roof looking good.

Drawbacks:

Higher Installation Cost: High Quality Materials and labour
Rigid Fixtures: Hidden fasteners render repairs difficult
Dents at Risk: Could be damaged by large hail or rubble

Standing Seam Metal Roof vs Other Steel Roofs

Fasteners: Covered (standing seam) or Open (open fastener)

Standing seam metal roof has several advantages over other metal roof systems, including beauty, sturdiness and durability. Explicit fastener systems are generally less expensive and quicker to install, but the exposed screws will detract from the look of the roof and may need regular repair as fasteners might leak around them. The standing seam metal roof, however, install fasteners concealed which is cleaner looking and prevents leaks because fasteners are protected from the weather.

Weatherproof: Great for standing seam in tough environments.

Standing seam roofing has superior performance over other roofs when it comes to durability and maintenance. Exposure fastener assemblies are inexpensive but can be compromised in high-wind or low-rain areas because the screws are exposed. Standing seam metal roof is better suited to extreme climates where wind, snow, and sunlight are harder to withstand than exposed fasteners or asphalt, and will therefore have a longer lifespan. For homes in areas with harsher weather, the extra expense of standing seam roof is usually offset by fewer repairs and replacements.

Floating clips at the standing seam to reduce buckling

The other major difference is installation and structural strength. Standing seam roofs have floating clips that permit temperature changes so that you don’t have to worry about overheating in regions where temperatures change. It keeps from warping and buckling that might be a hindrance to other metal roofs that don’t incorporate thermal circulation features. Exposed fastener roofs are more prone to this as the fixed fasteners cannot accommodate expansion as well, resulting in structural problems in the long run.

Cost: Higher upfront investment, longer-term efficiencies

Finally, cost and versatility contribute to the correct decision. Exposed fastener systems are good for the low-cost customer, but standing seam roofs provide longer term value for homes and businesses. Despite being more expensive to buy at the start, they tend to be more affordable over time due to their lower upkeep and longevity. For homeowners who require a roof system that will last, be easy to maintain, and will add beauty to their home, standing seam roofing is a versatile solution for a wide range of climates and styles.

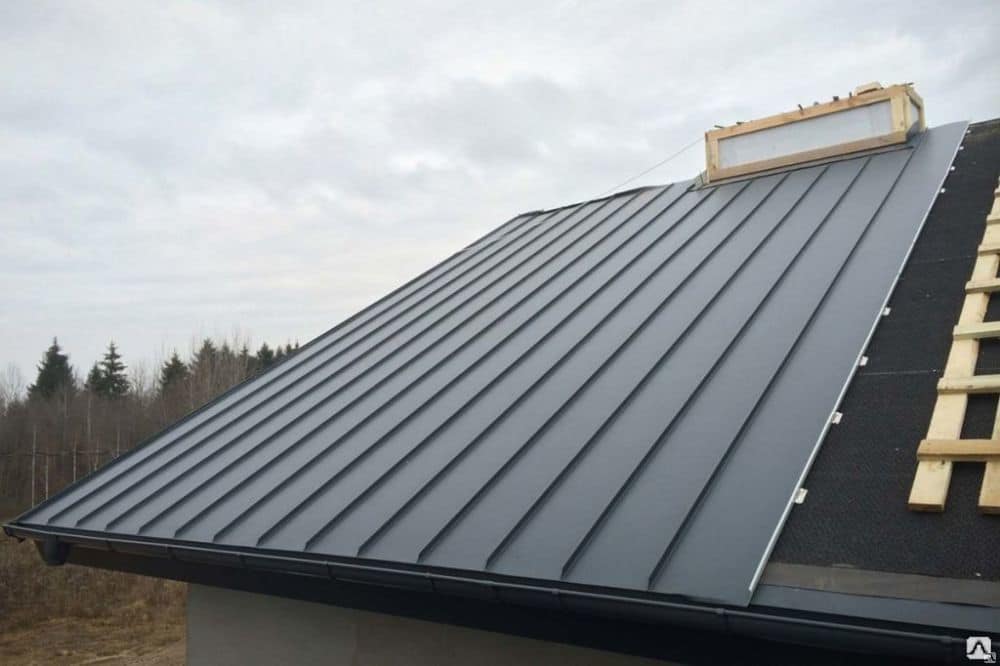

standing seam metal roof details

Additional Features

Standing seam metal roof feature convenience and functionality that homeowners appreciate. Thermal movement, for instance, refers to the roof’s capacity to expand and contract as temperatures vary. This is particularly true for metal roofs as temperature swings can create considerable motion. Standing seam roofs’ hidden fasteners and floating clips ensure that the natural expansion doesn’t compromise the structure, resulting in less problematic conditions such as buckling.

Most standing seam roofs are solar panel mountable, which makes them a sustainable alternative for those who care about renewable energy. The hidden fasteners enable solar panels to easily attach to the roof without breaking the roof. Further, standing seam roofs can accommodate features such as snow guards that are needed in snowy environments to keep heavy snow from sliding away suddenly and damaging the structure.

Insurance companies might offer discounts for the metal roof of a house, especially standing seam roofs, which keep the house safer from fire and other damage. Insurance premiums can be cut, which further bolsters the financial appeal of this roofing option. All of these characteristics, combined with the structural benefits of standing seam metal roofs, render them a viable long-term choice.

Notable Features:

Thermal Expansion: Helps prevent buckling when temperatures vary.
Solar Panel Integrity: Easy Installation without roof damage

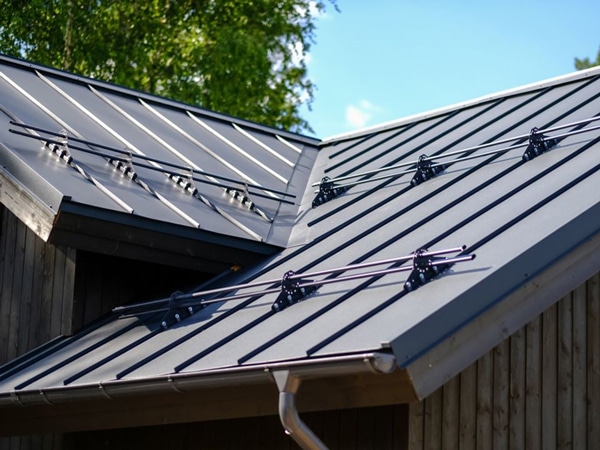

Snow Guards: Best for areas where snow accumulation is common.

Standing Seam Metal Roof: Warranties and Lifespan

The warranties on standing seam metal roof are often generous, a testament to their longevity.

Warranty Types:

Environmental Protection: Assurance against certain climate-related risks.
Normal Life: 50 years (and more for high-quality fabrics).

Normal warranty usually ranges from 40-50 years for most manufacturers, but may be longer for some premium metals like copper. Warranty terms vary from manufacturer to manufacturer, but most typically include defects in materials, performance problems and environmental damage. It is extremely important to understand the warranty when homeowners want to safeguard their investments.

Material-Based Warranty l (e.g., Galvalume, copper)

Material-specific warranties differ depending on the material. Galvalume roofs, for instance, can have a 40-year protection against rust and fade, whereas copper roofs can have a lifetime warranty against corrosion because of copper’s inherent resistance. Aluminum, too, can have lengthy warranties, especially in coastal locations where corrosion can be a concern. These warranties give homeowners peace of mind and guarantee them a return on their investment.

Because standing seam metal roof can last 50 years or longer when maintained properly, they outlast most other types of roofs. This durability not only reduces the need for replacement but provides security knowing that the roof will weather conditions and hold the home in good shape for decades. These warranties make standing seam metal roof virtually unbeatable in terms of reliability and the best long term roofing option.

Final Considerations and Practical Tips

Choosing standing seam metal roof involves weighing a few variables, from price to aesthetics. Homeowners should also look at their local climate, because certain types of materials and styles will work better under certain conditions. The heavy snowfall areas, for instance, might have snow guards on their mechanical lock panels; those along the coast might choose aluminum for corrosion protection.

Installing it needs the help of an experienced installer. A bad installation can cause leaks, structural damage, even voiding warranties. Homeowners should search for skilled roofers with standing seam metal roof experience to make sure the roof performs at its best. In addition, choosing the right color and finish will also affect the home’s energy performance and curb appeal.

It requires little upkeep but is very helpful to maintain the life of the roof. Every year, homeowners should look at their roofs to see if there are any dents, missing screws, or debris. Taking these precautions will keep the roof looking and working properly for years, making it a good investment.

Practical Tips:

Climate Notes: Match material and profile to local environment.
Pro Installation: Make sure it’s high-quality, so warranty issues aren’t an issue.
Periodic Checks: Remain clean and in good condition.
